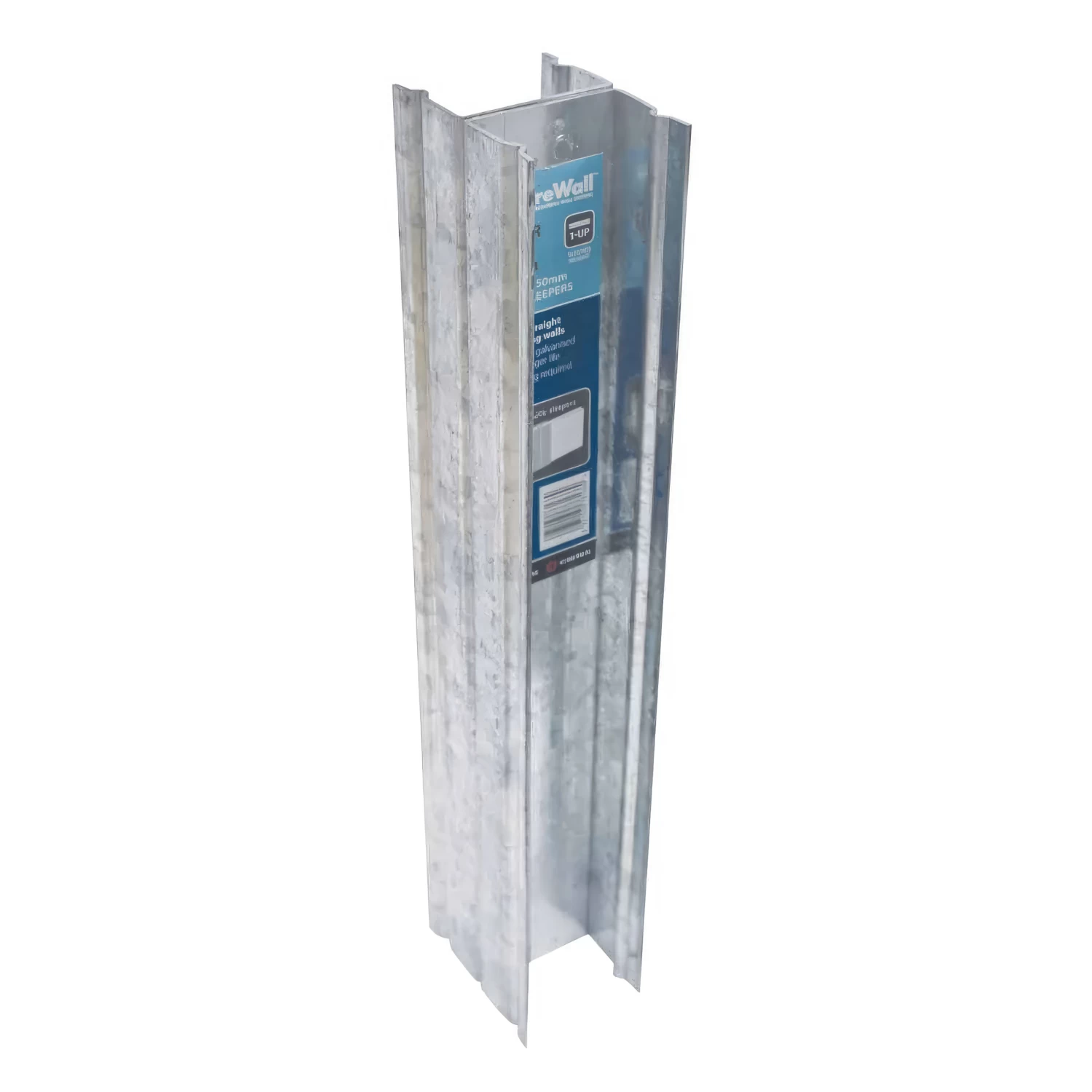

Strol SureWall Retaining Joiner Post 65mm X 450mm

SureWall is a slide together system designed for the creative DIYer looking for a quick and easy retaining wall solution. This joiner post is suitable to create a retaining wall with a height of 200mm.

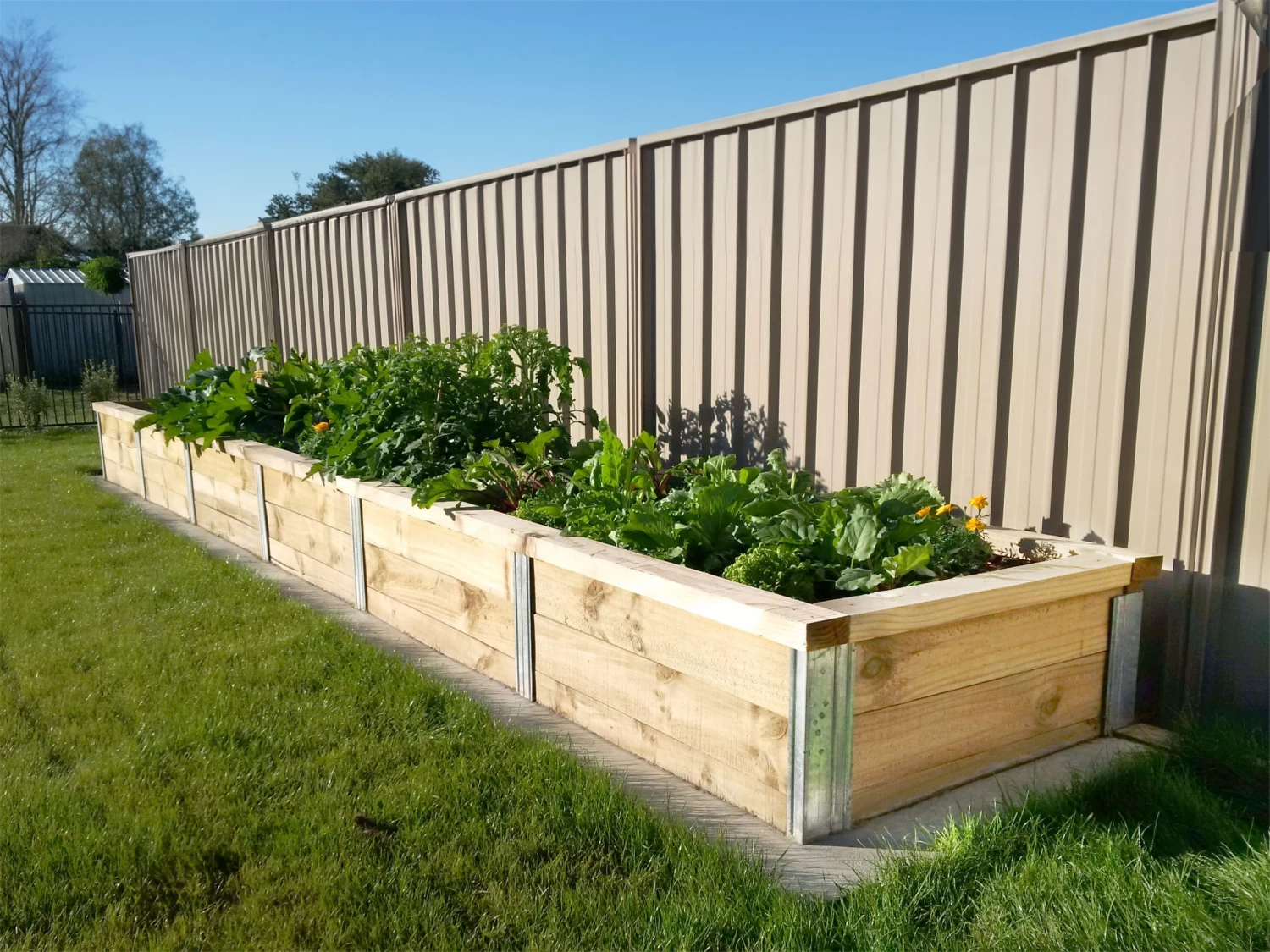

This innovative system can be used in many applications such as creating raised gardens and paths, or bracing sloping lawns. Make the sloped areas of your backyard more functional by preventing water and soil flow and stabilising the ground for foot traffic or vegetation.

The SureWall system offers significant labour savings due to the minimum excavation required and there is no need for fasteners, saving time and money.

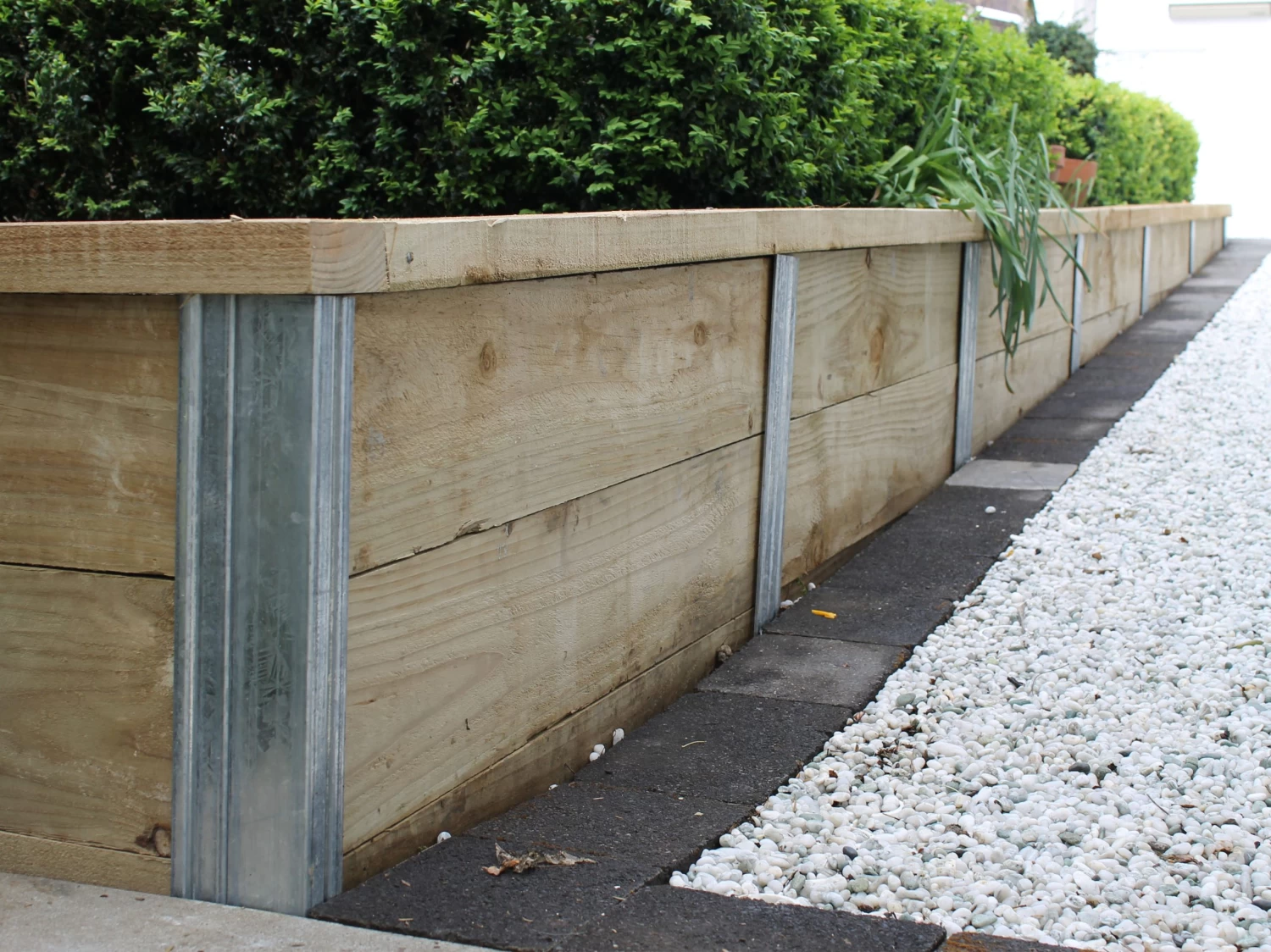

Made from high tensile, robust galvanised steel that has at least 20 years life expectancy (location dependent) These walls build a flush finish, creating a smart, modern, non-obtrusive wall.

Building one is easier than you think – check out our Installation Tips section below & our Post Guide found in the image carousel.

Add value and style to your property with SureWall – stylish, sophisticated, stunning!

FEATURES:

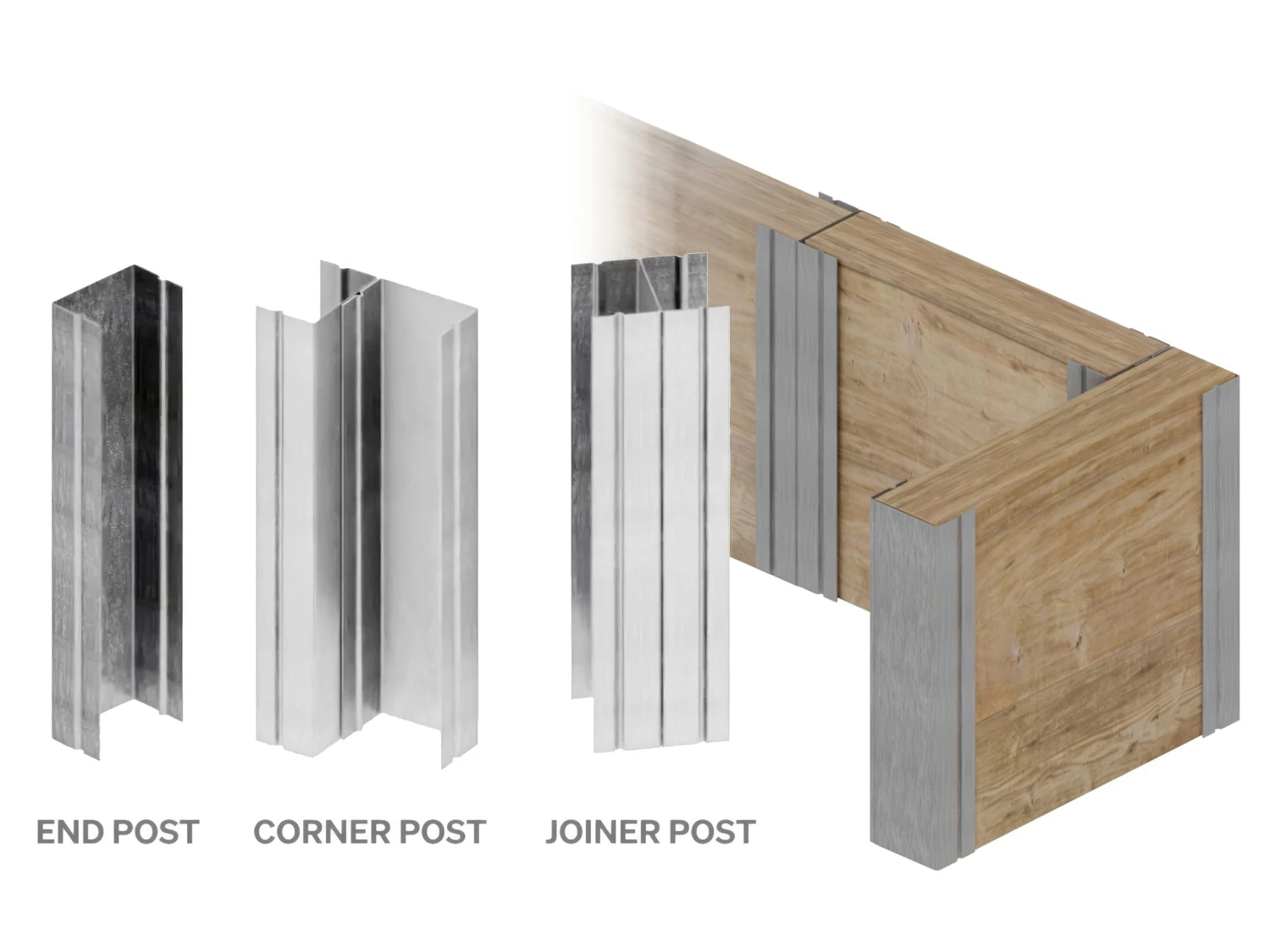

• DIY retaining system joiner post
• Quick & easy
• Significant labour savings
• No fasteners required
• Minimal excavation needed
• Flush finish, smart modern appearance
• High tensile long lasting galvanised steel
• 20+ year life expectancy

INSTALLATION TIPS:

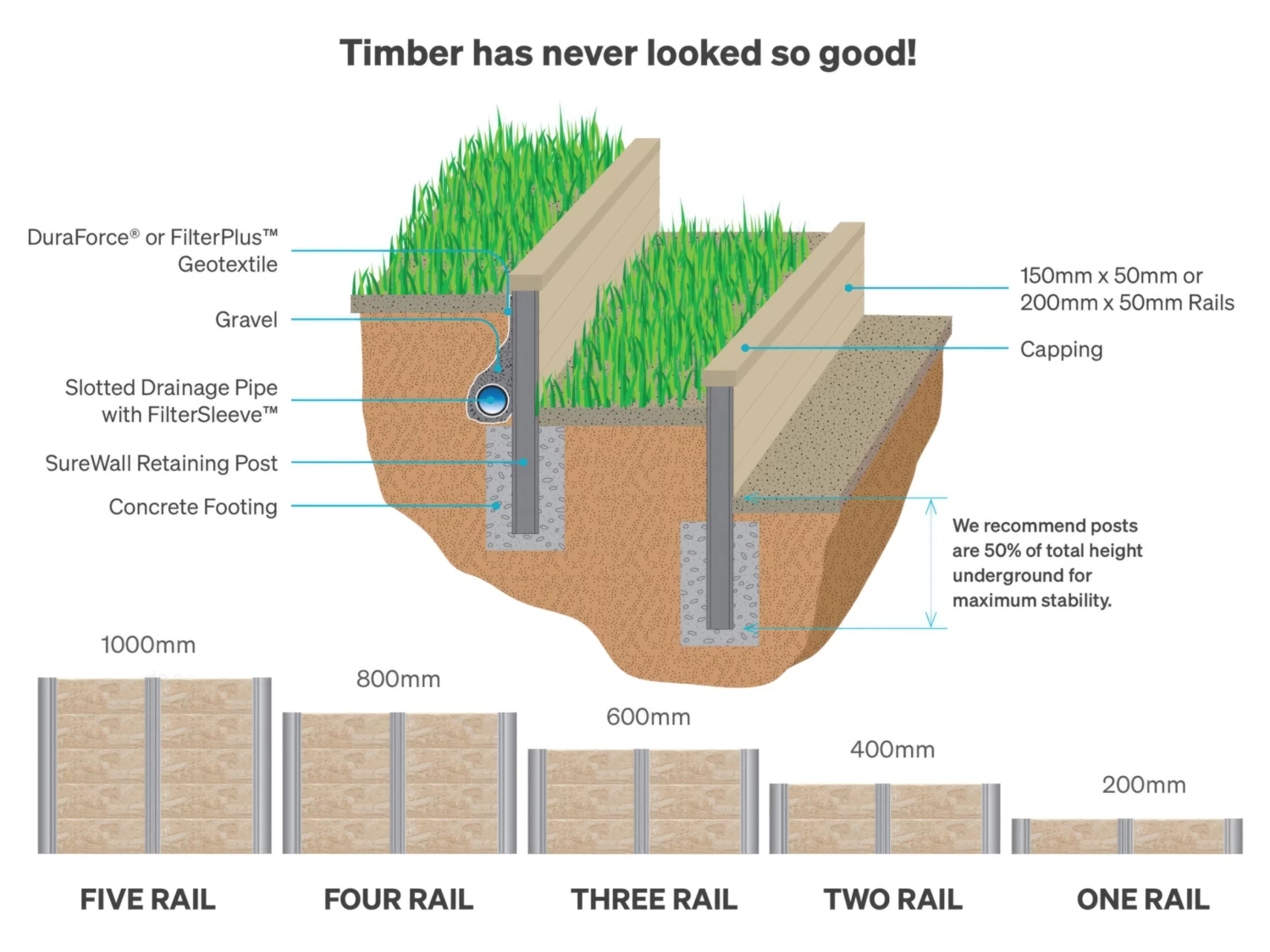

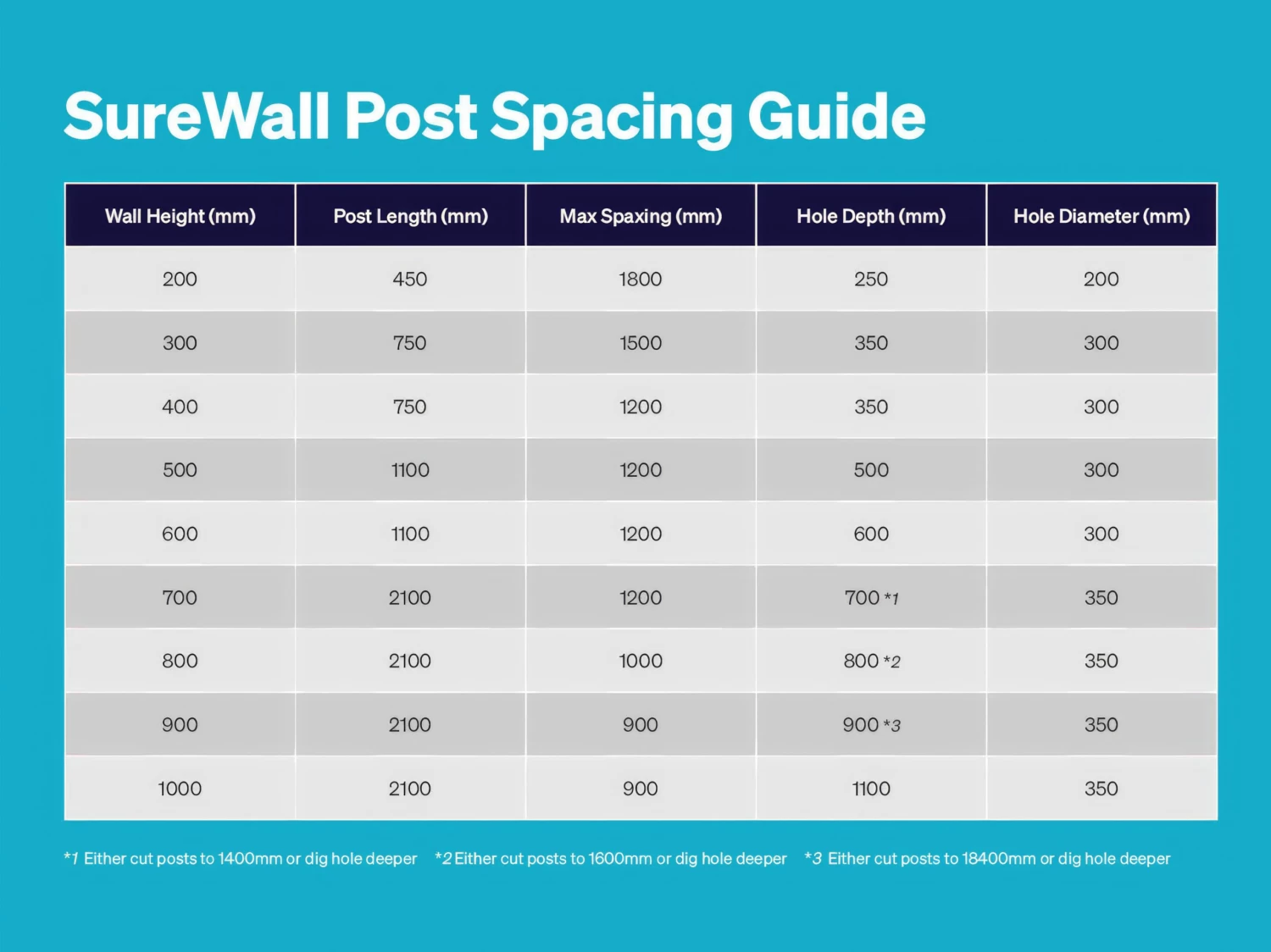

SureWall is designed to easily create perfect 90° corners, however with a 15° tolerance you can also create ‘curved’ walls at special angles. You can also achieve a ‘stepped’ wall effect with different height SureWall posts, remembering that half the length of the post needs to be underground. Please see our ‘Post Spacing Guide’ (found in the images of this product) for more guidance on post spacing and hole depth.

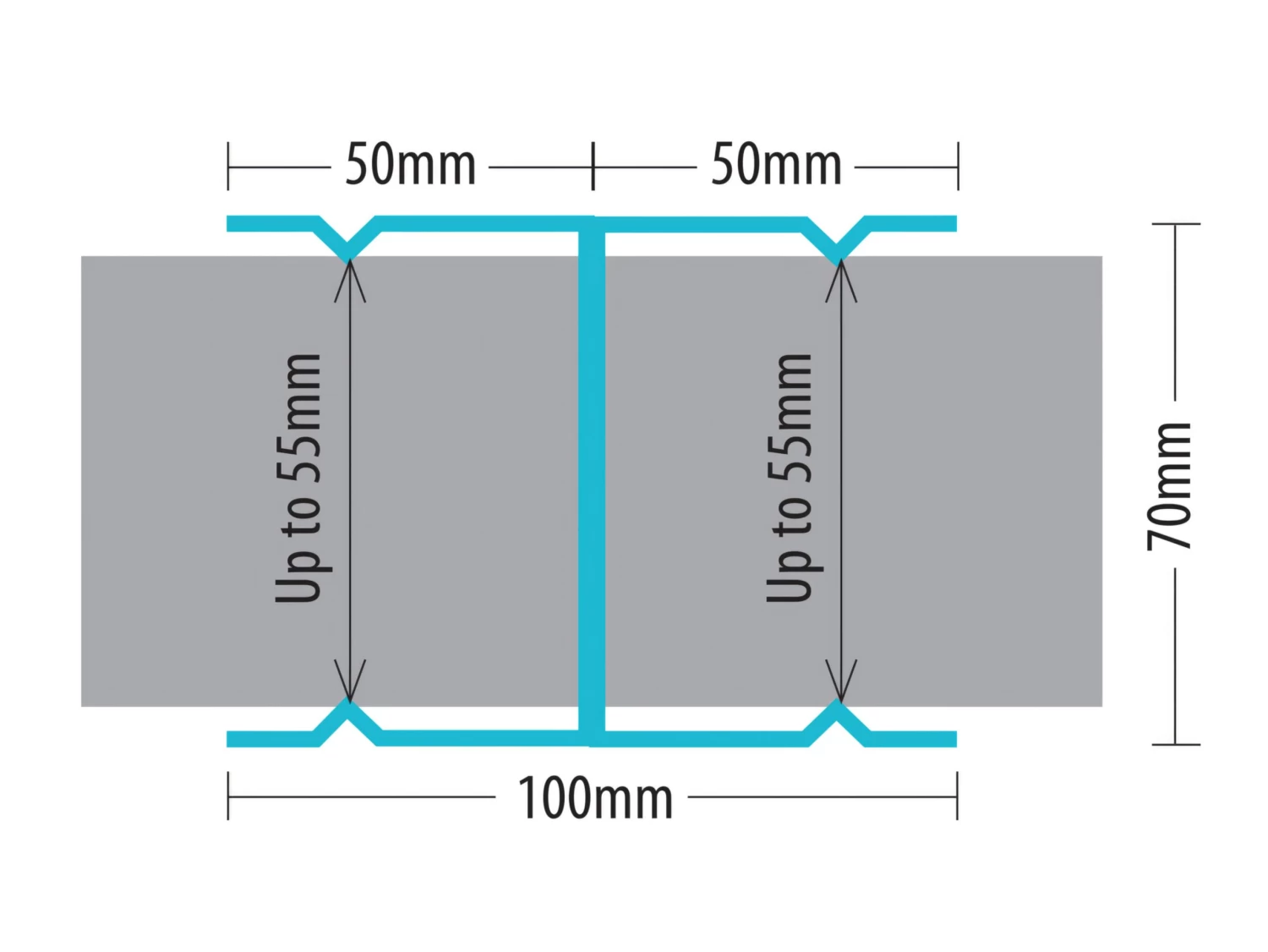

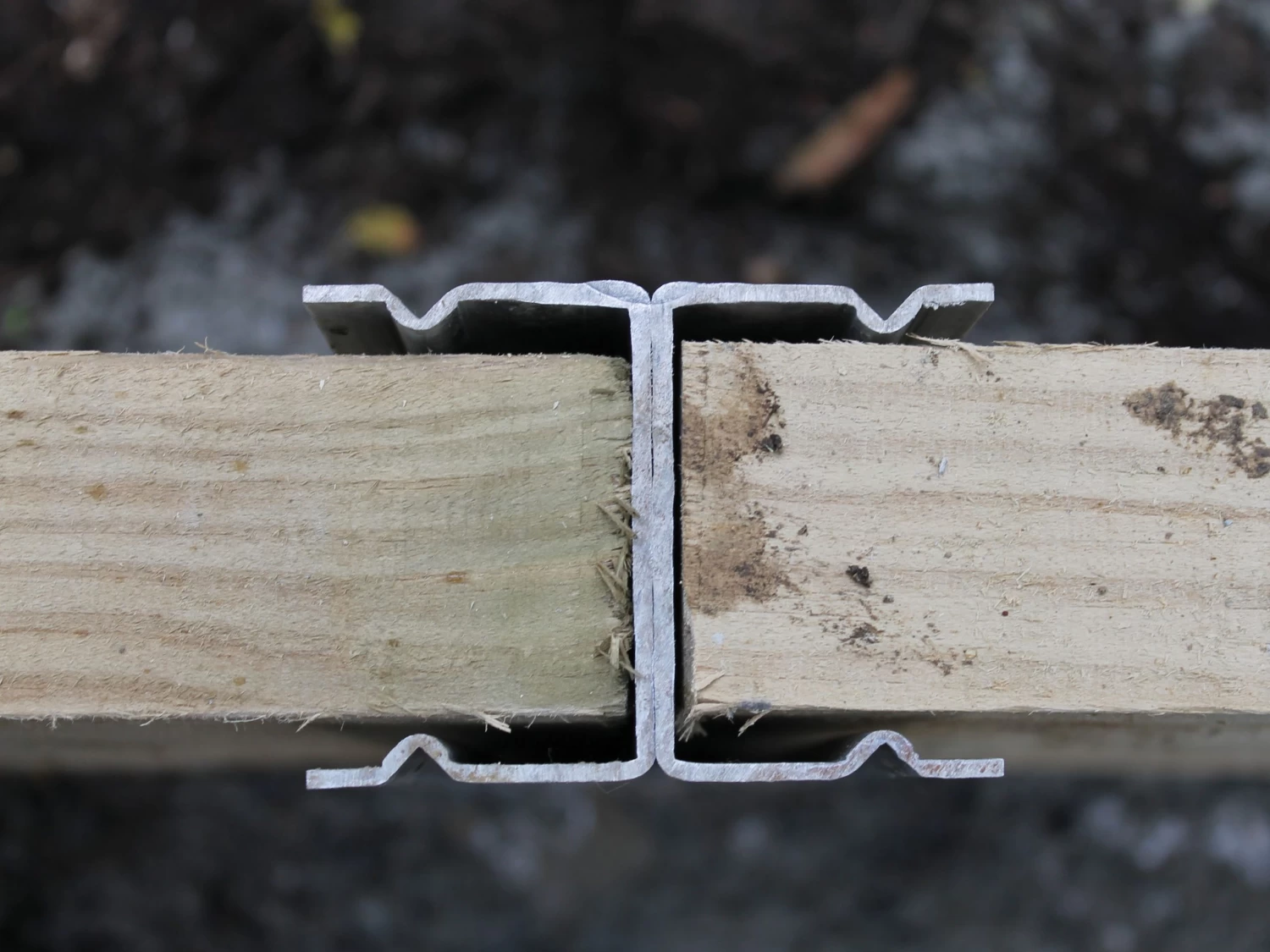

These posts are 65mm wide, so a 50mm sleeper is the best fit, so that there is some room to move as the timber shrinks and swells. If you wish to use a thicker sleeper, simply rebate the end to fit the posts.

Surewall post design life is dependent on the condition they are installed in and the loads on the post, as any corrosion over time will reduce the structural capacity. Posts will last longer inland rather than coastal, as saltwater tends to erode steel faster. When it comes to load rating, any retaining wall with a surcharge would be best designed by an engineer as the load rating etc. depends as much on the soil types and other factors as well as the post strength.

SPECIFICATIONS:
Post type: Joiner
Post size: 65mm x 450mm
Material: High tensile galvanised steel
Creates wall height: 200mm
Hole depth, size & spacing: See images
Suitable sleeper size: 50mm
Max wall curve tolerance: 15°
Post weight: 2.6kg

View Installation Guide
