Louvre Roof System Wall Mount 3m X 3m White

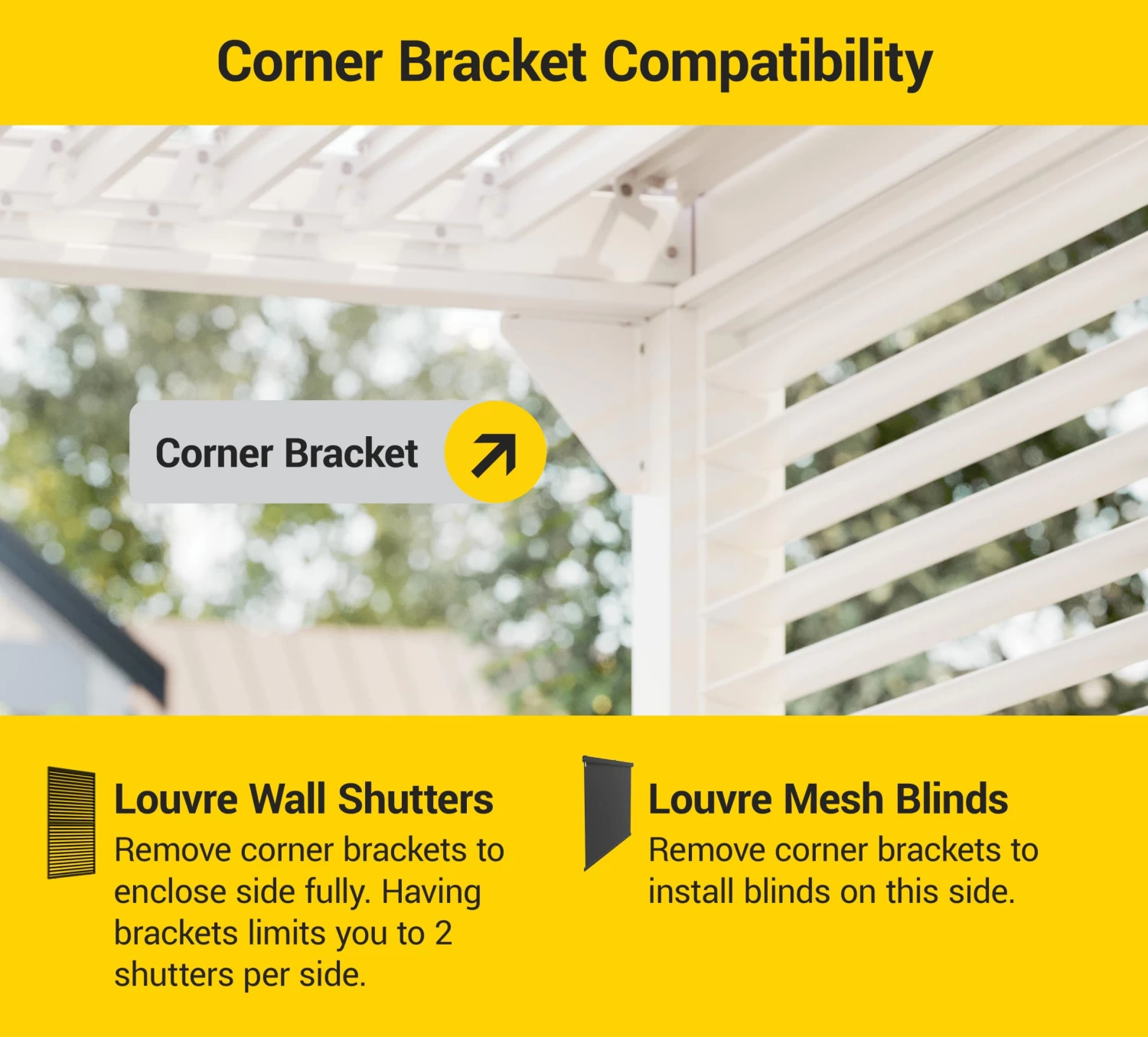

☆ Note on accessory compatibility: Blinds and shutters can only be placed on the front opening of Wall Mounted Louvre Roof Systems due the 3° fall angle of the sides. Both accessories replace the corner bracket during installation. For 3m sides (2.7m post to post), use a single 2.7m blind or up to three 0.9m shutters. See images above for more details.

Our best-selling Louvre Roof Systems are now available as a versatile wall mount system.

Got a tighter space or just want a seamless indoor/outdoor flow? This wall-mount louvre roof system comes with everything you need to instantly add liveability & value to your home.

The integrated crank system allows you to easily and smoothly open or adjust the louvres. Open it right up and enjoy that perfect Kiwi summers day or keep it closed when the weather is changeable – the integrated gutters and internal downpipes make this roof system truly all-weather.

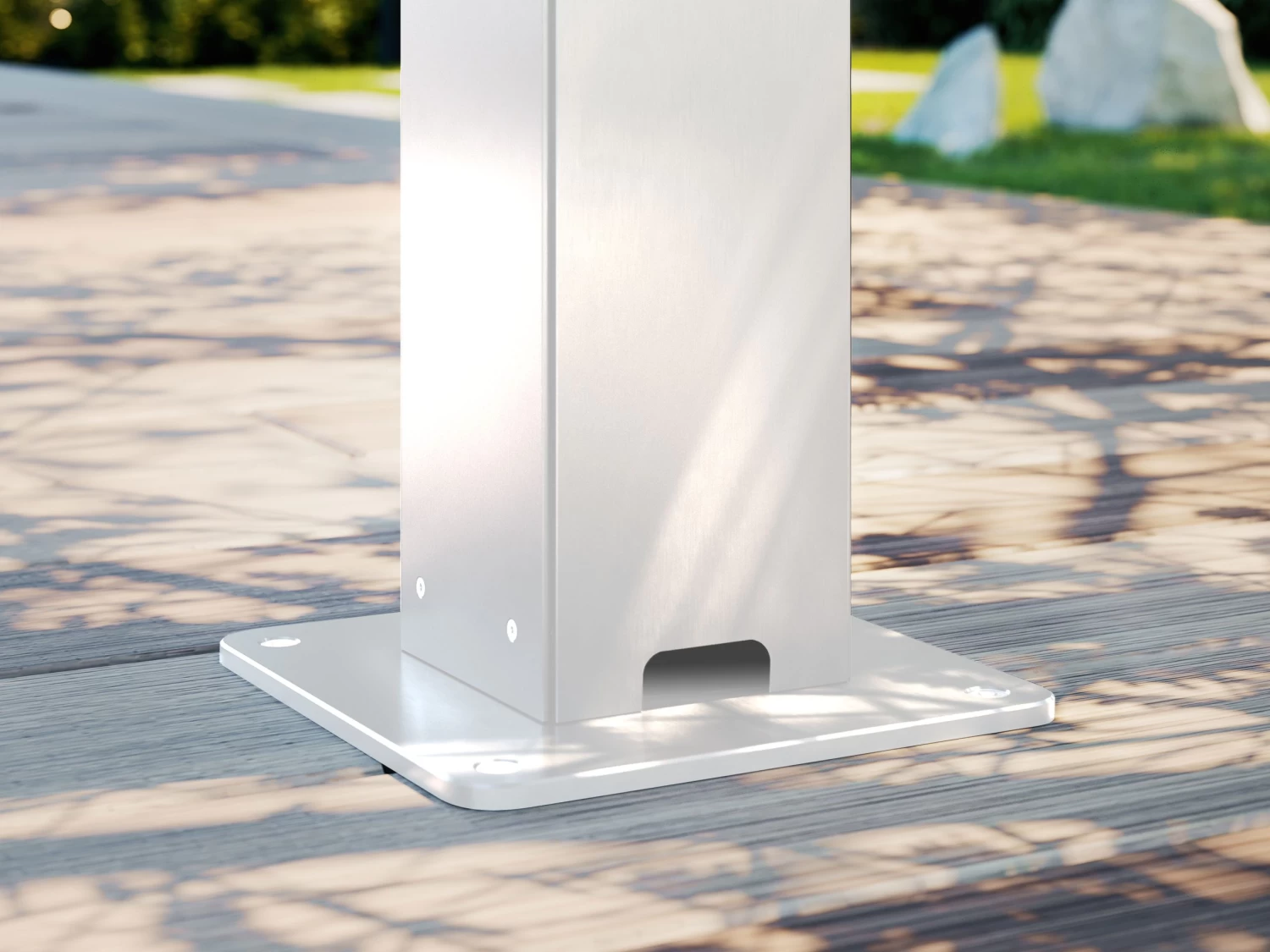

The crisp charcoal powder coat finish and contemporary style blends well with most outdoor areas, while the straightforward instructions make this a great DIY upgrade. The built-in gutters feature hidden outlets through the foot of each pole, letting the water disperse without the need for ugly pipework everywhere.

This kit comes with wall-mounting bracket and 75mm coach screws for mounting on wood, but by swapping out the fastener type you can mount it to almost any load bearing flat surface.

Backed by solid 5 Year Warranty thanks to its strong aluminium frame, louvres and galvanised fittings, you know this roof system is built to last while being easy to clean and maintain.

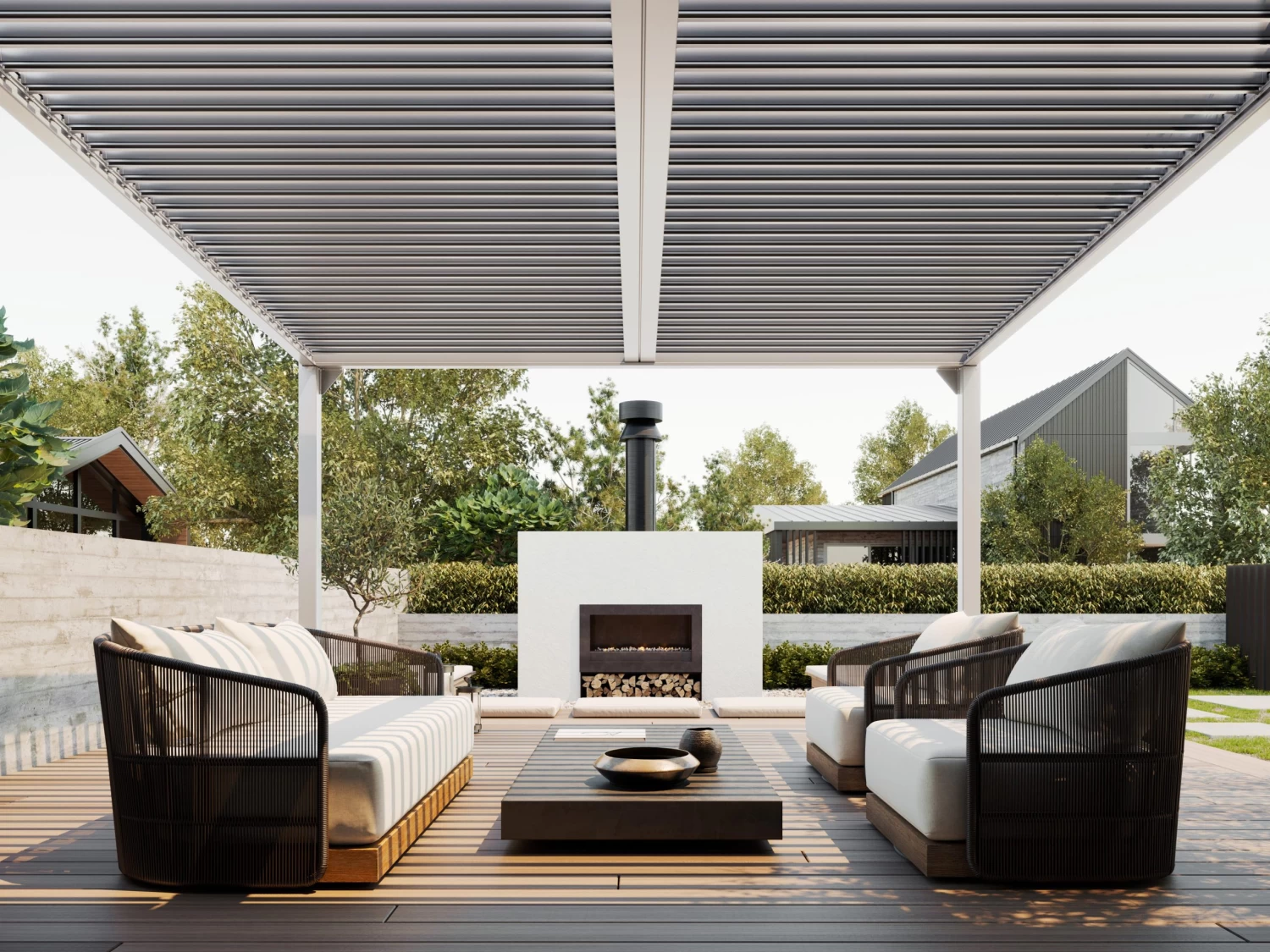

Each bank of louvres is operated by a separate gear crank system, so you really can tailor the shade to your needs. Keep one half cool and shady, then open the other side to vent the BBQ.

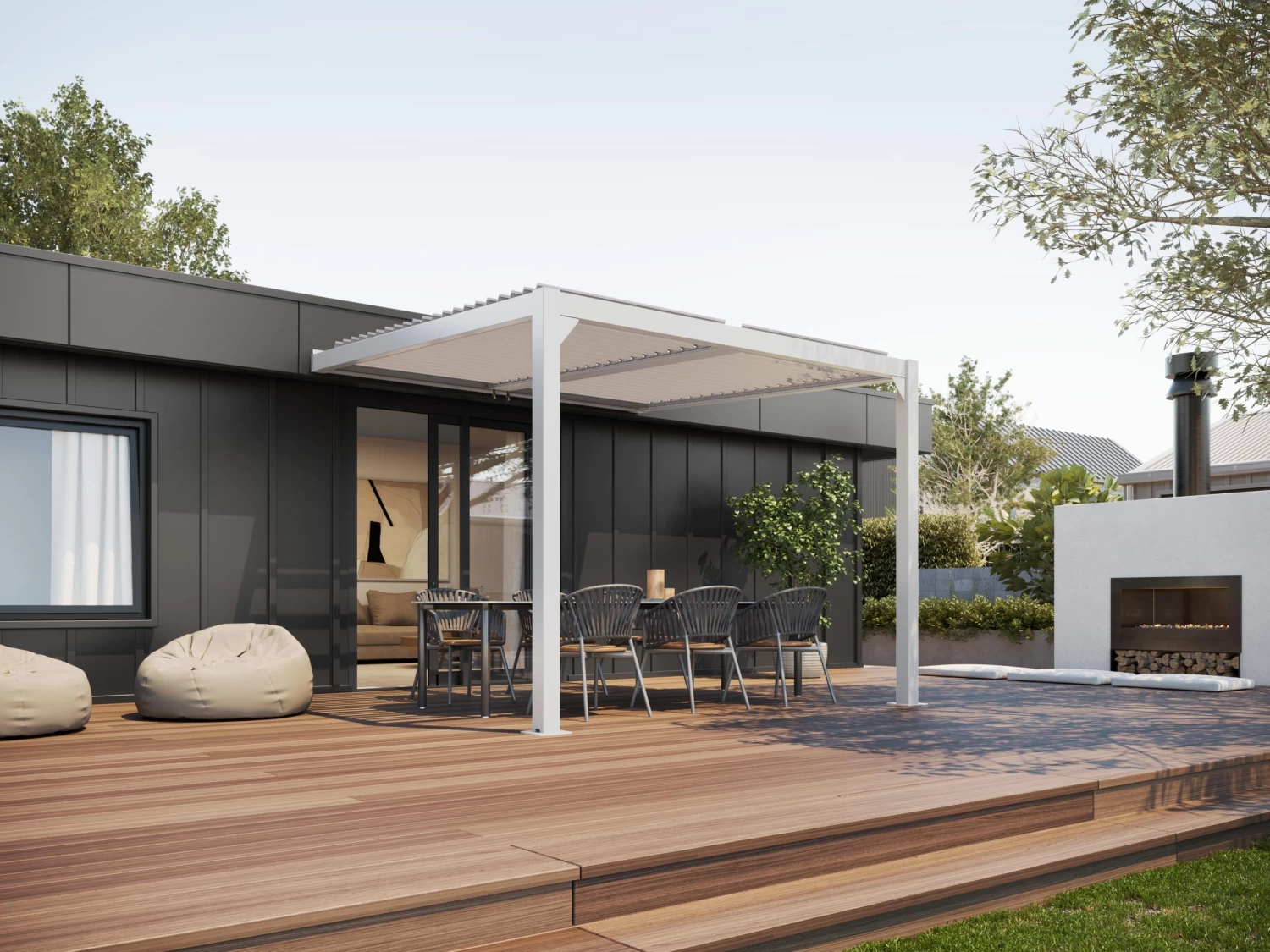

This amazing value wall-mount system is the ideal way to add some architectural style to decks, patios, pool areas or any other area that you want to transform into a stunning outdoor living room.

FEATURES

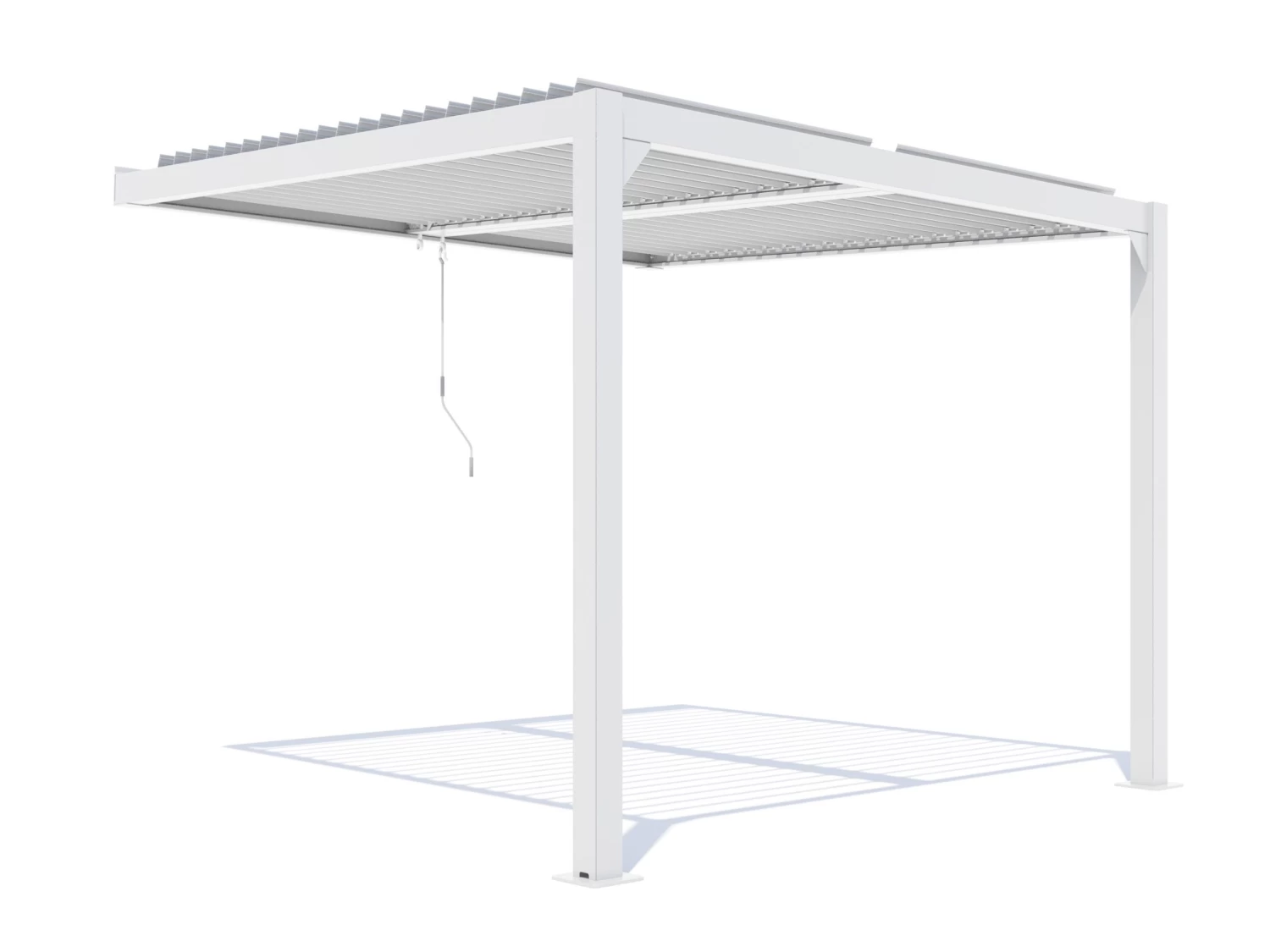

• Wall-mounted 3m x 3m louvre roof system
• Create your ideal all-weather outdoor living space
• Twin, adjustable louvre banks
• Fully-integrated gutter system with internal downpipes
• Gear crank system for infinite adjustment
• Rust-proof powder coated aluminium construction
• Sleek charcoal finish & architectural style looks amazing anywhere
• Straightforward DIY assembly
• 5 Year Trade Tested Warranty

SPECIFICATIONS
Total dimensions: W 2.966m x D 2.988m x H 2.3m
Total height of wall installation: 245.4cm
Frame material: Aluminium, 2.0mm (post) / 1.5mm (beam)
Louvre panel material: Aluminium, 1.4mm
Top beam dimensions (each): W 45mm (horizontal) x H 120mm (vertical)
Colour: White powder coat
Post dimensions: 230cm x 10cm x 10cm, 2.0mm aluminium
Louvre dimensions: L 135.4cm x W 14.5cm
Supplied fixing: M8 x 75mm
Ground plate dimensions: 16cm x 16cm
Weight net/gross: 115/134kg

Carton dimensions: Carton 1 – 261cm x 26cm x 15cm, 22kg. Carton 2 – 287cm x 30cm x 29cm, 53kg. Carton 3 – 145cm x 35.5cm x 30.5cm, 55.5kg.

View assembly manual
