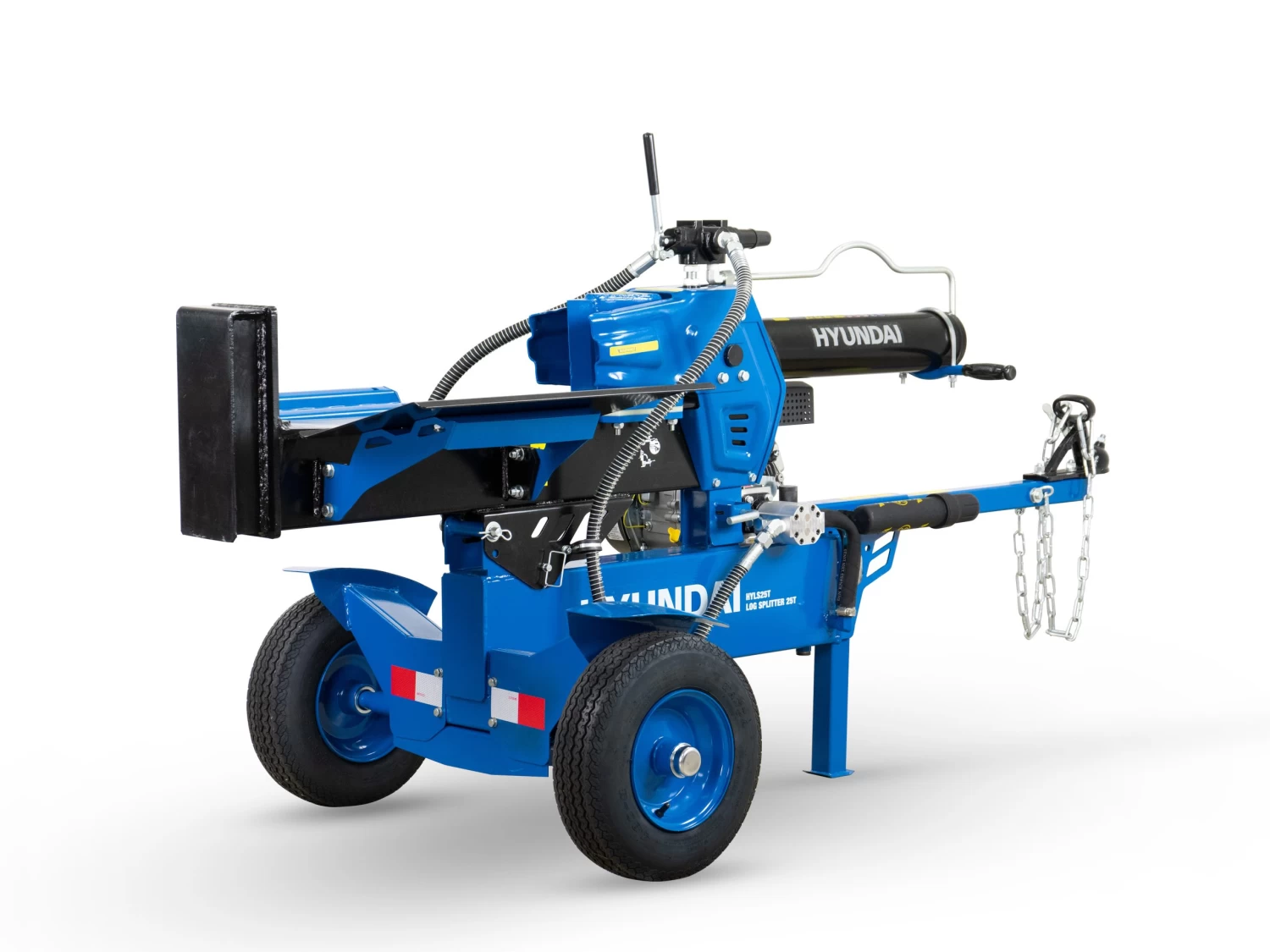

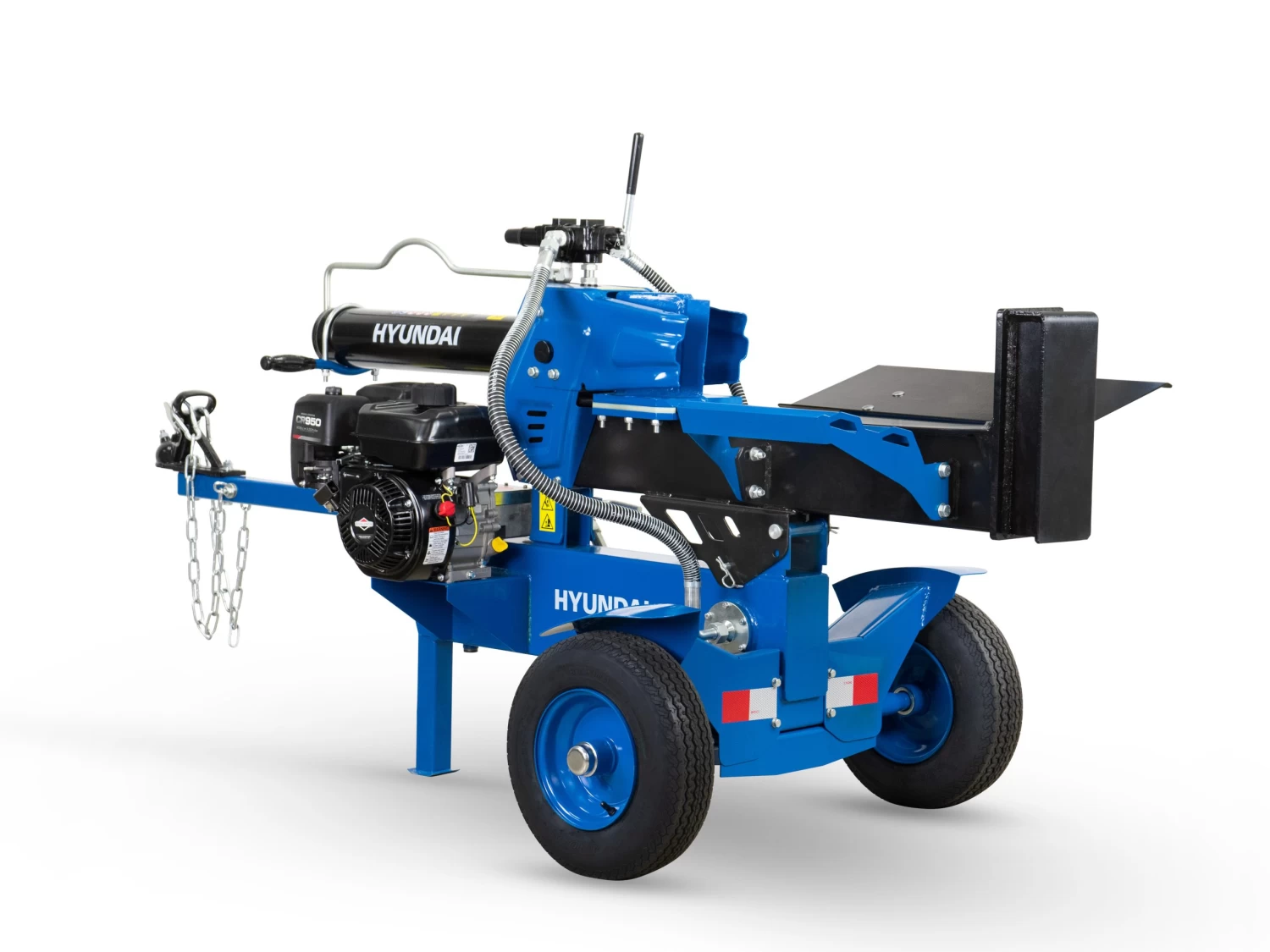

Compact, tough and powerful, this 25T log splitter is the perfect way to crunch through your log pile.
The rugged Briggs & Stratton 208cc engine provides all the grunt you need, while oversized hydraulic components mean a class-leading cycle time of 9.7 seconds, helping you work quickly and easily.

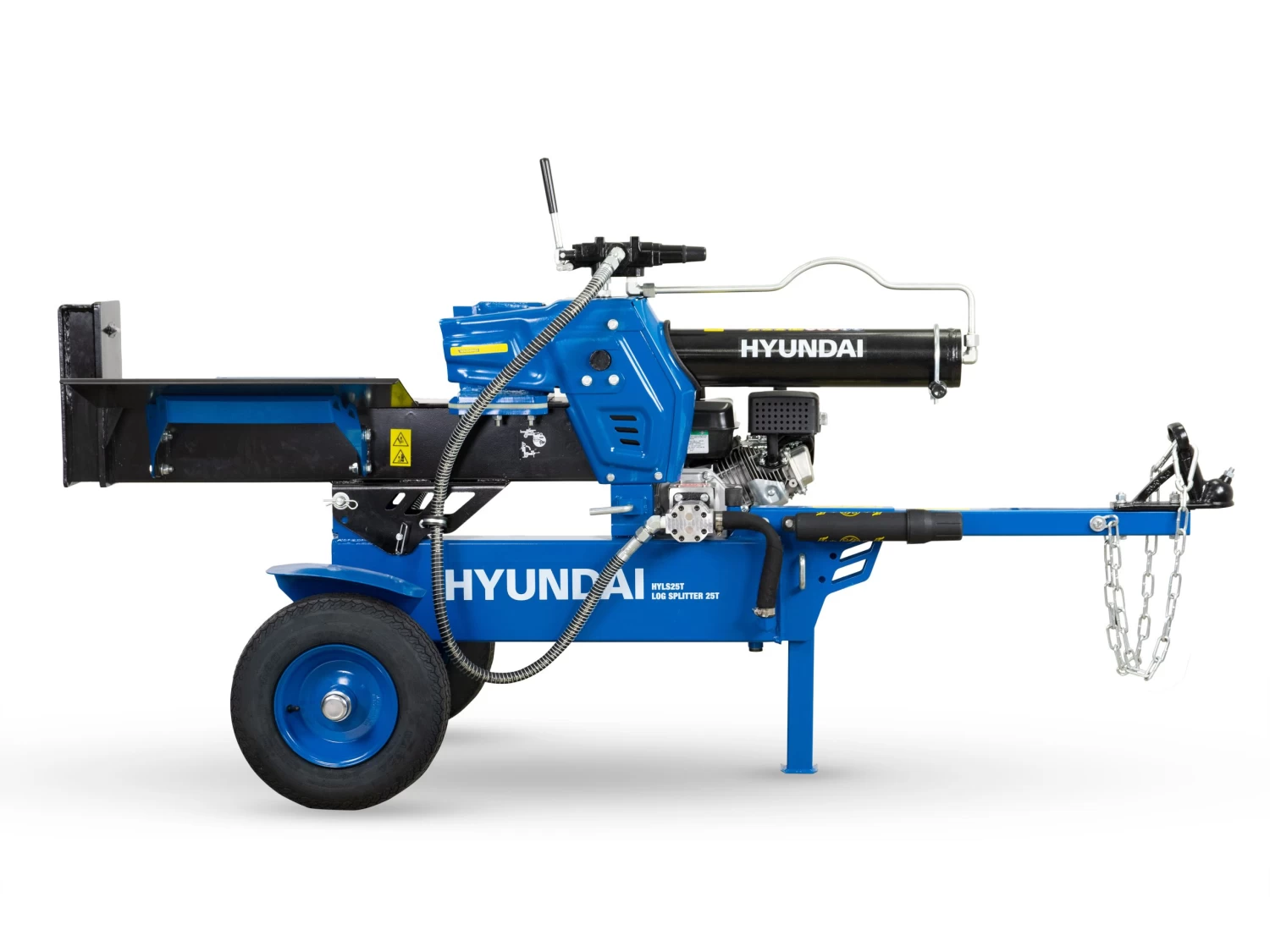

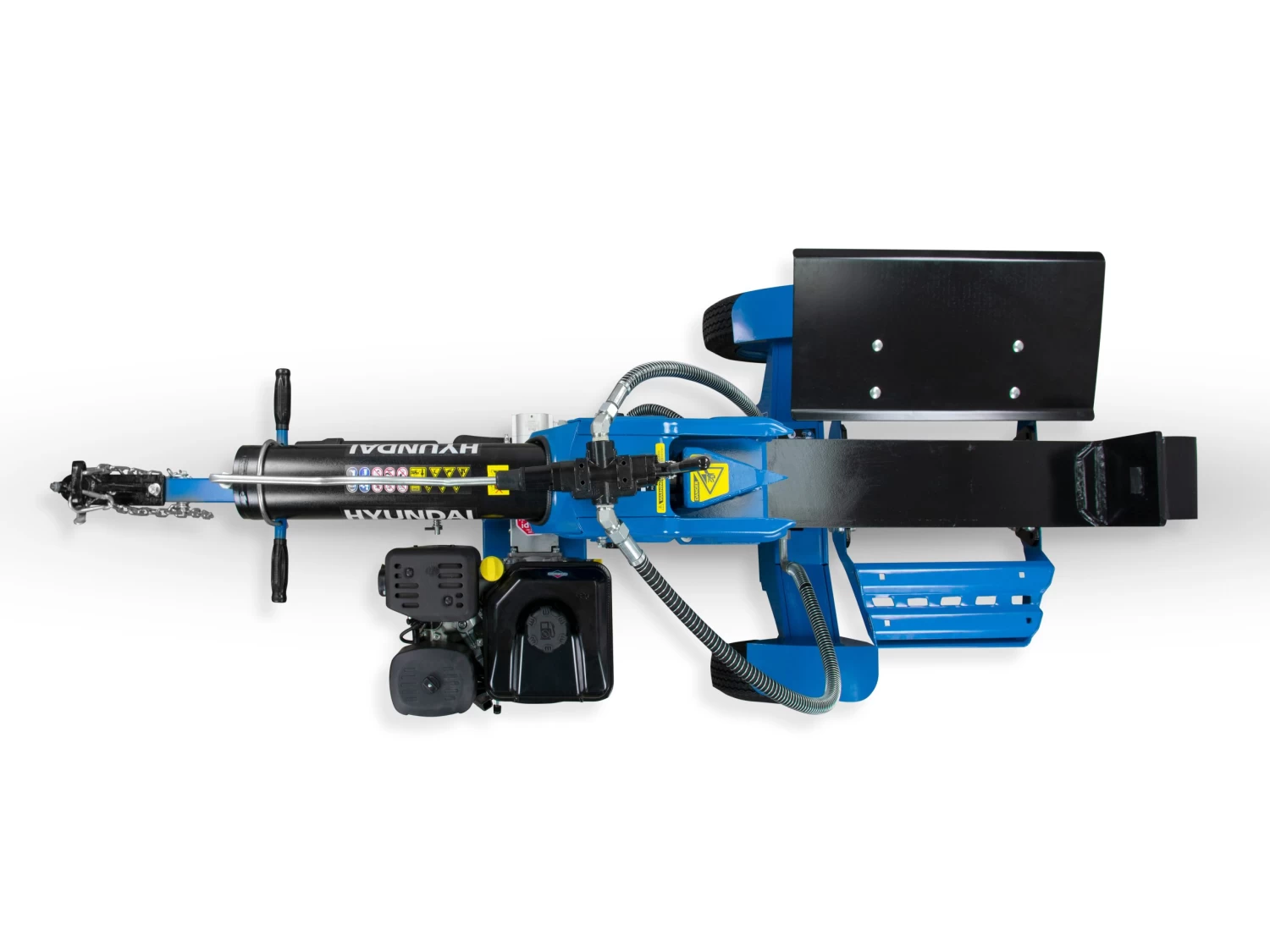

The next-generation half-beam design is strong and, with the hydraulic reservoir centrally located, ultra stable. Combined with the rear mounted engine placement, central mount controls and dual work tables, this means Hyundai splitters can be easily and safely operated from both sides.
The half-beam layout gives you plenty of space to deal with logs up to 650mm long. Switching between horizontal and vertical operation is straightforward, thanks to a clever integrated grab handle on the cylinder.

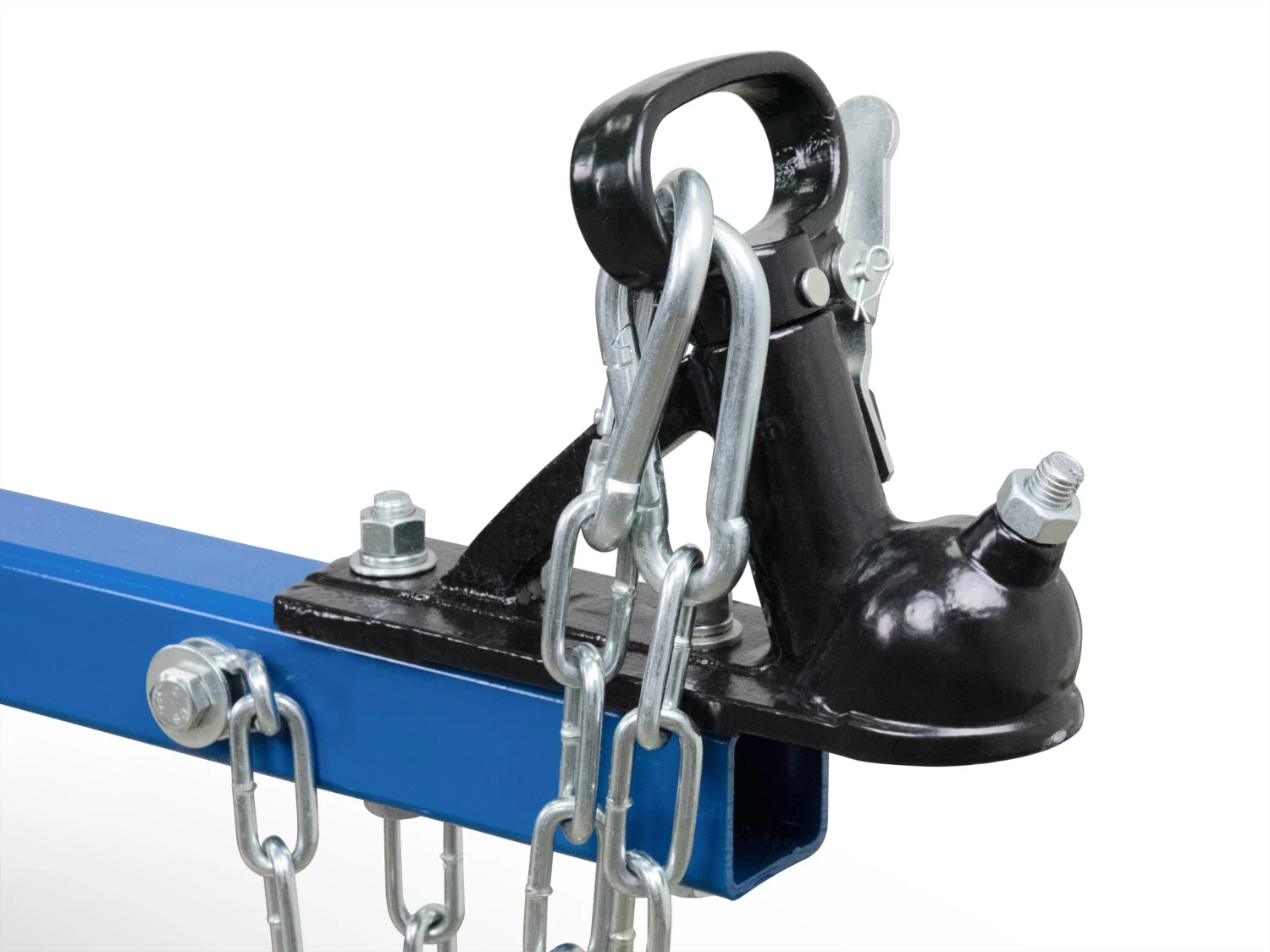

The standard wedge suits most NZ firewood, or add the optional four-way cross wedge (pictured) to make short work of softer wood. A 50mm tow bar hitch and 16” tyres make maneuvering around larger properties fast and simple.
Simple to assemble and easy to use, it’s the back-saving workhorse that your property needs. Order yours today.
Unit is shipped with hydraulic oil (Valued at $139) – engine oil WILL need to be added before use. Some assembly required.
FEATURES
• Compact, stable and powerful half-beam 25T hydraulic log splitter

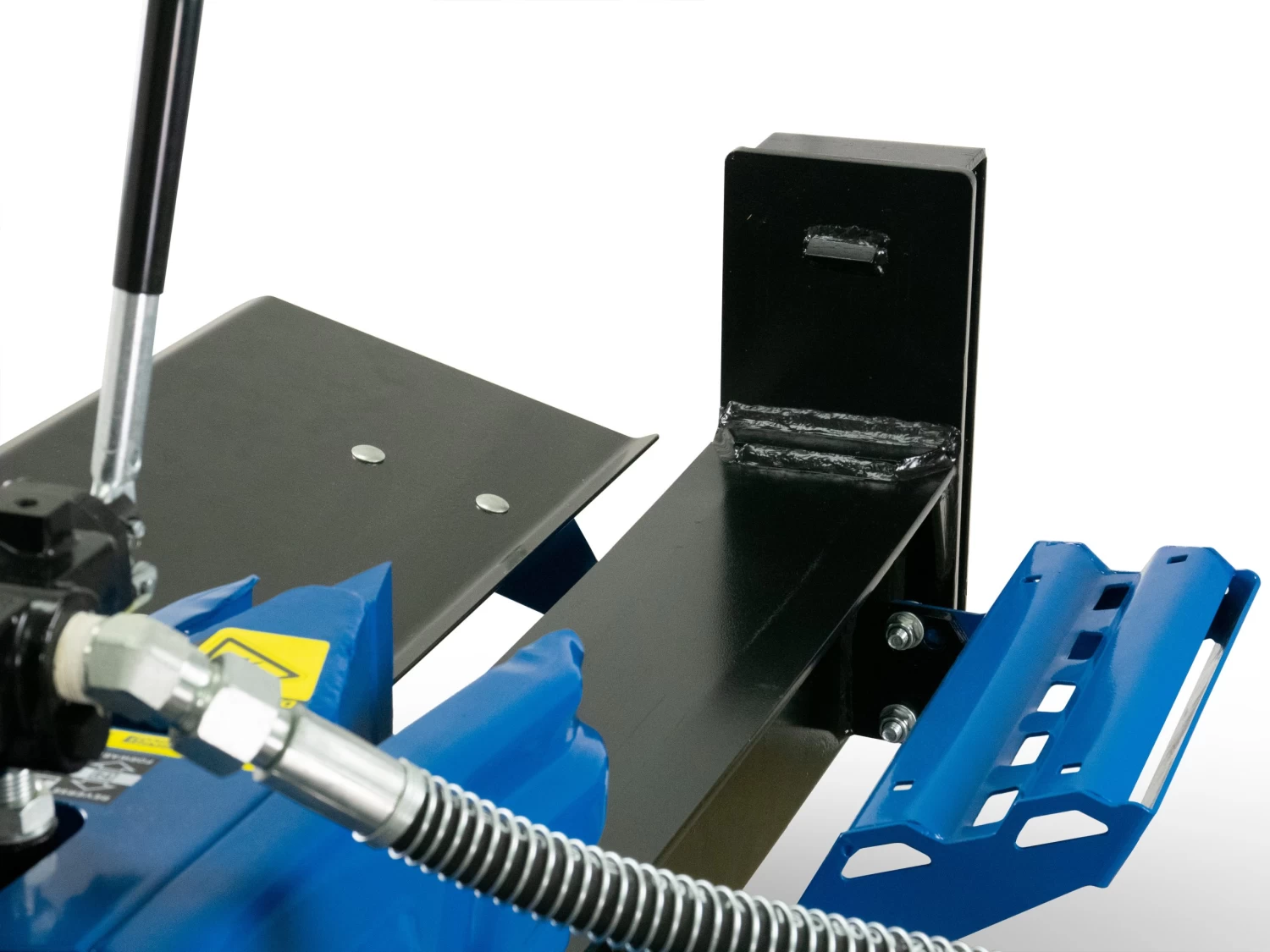

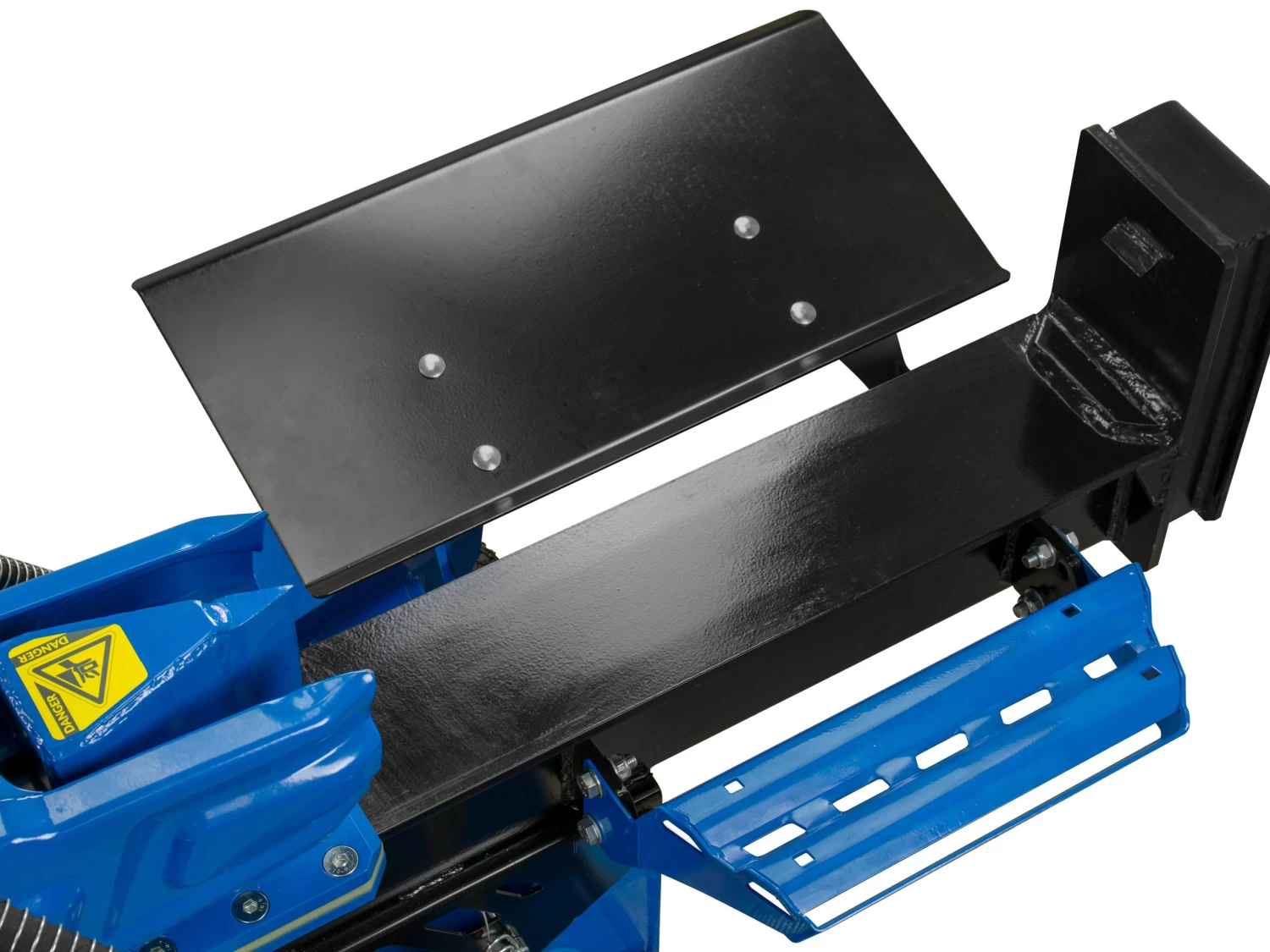

• Central controls and dual work tables for easy operation from both sides
• Fast 9.7 second cycle time
• Split logs up to 65cm long*
• Briggs & Stratton 6.5hp engine

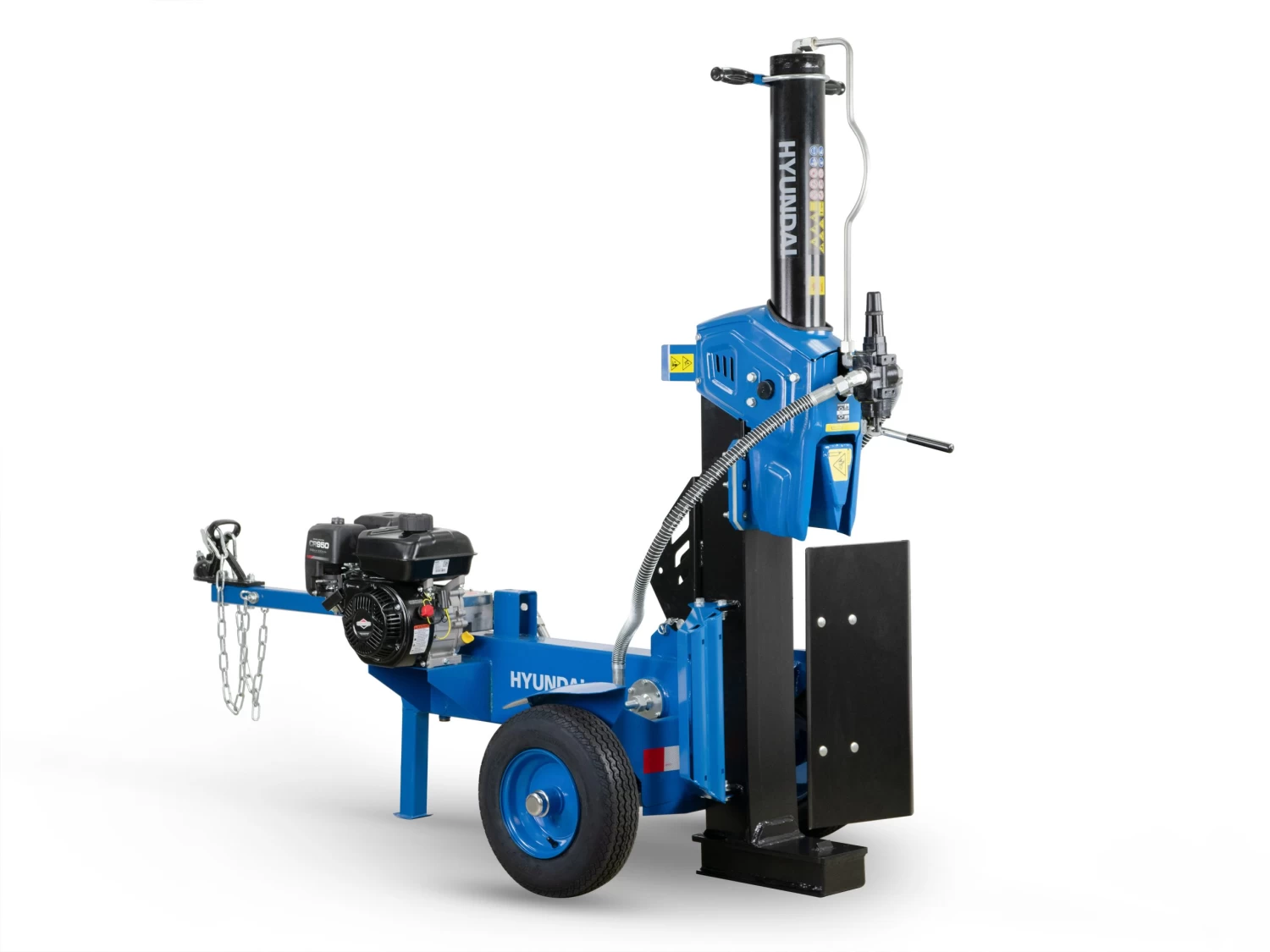

• Horizontal or vertical operation

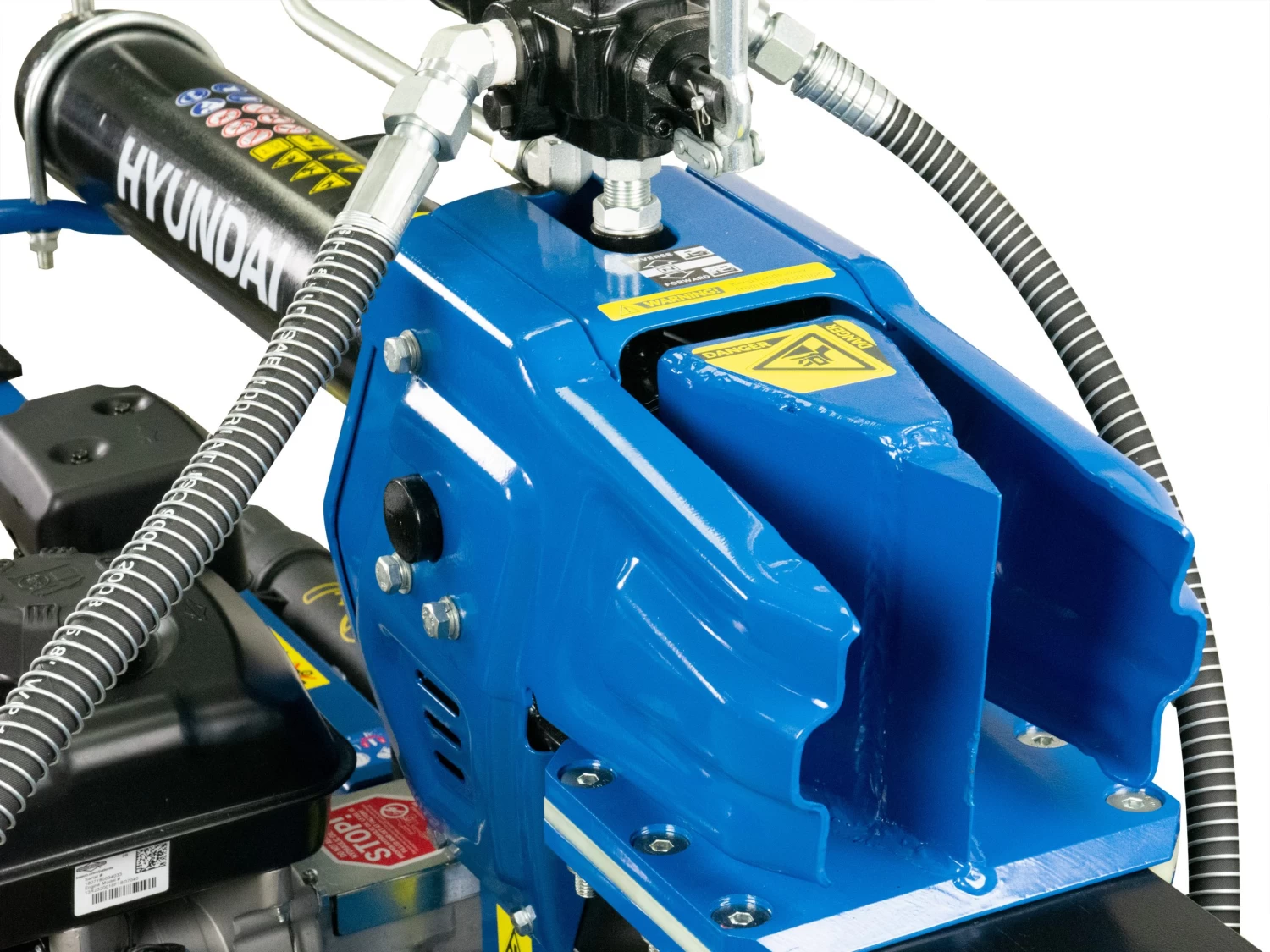

• Standard 7.5” wedge (cross-wedge pictured optional)
• 50mm tow hitch, 16” pneumatic tyres (off-road use only)
• New U-Beam structure design is significantly stronger than typical I-Beam layout
• 2 Year Hyundai Warranty
*The maximum splitting diameter may vary depending on the type of wood, the age of the cut, or wetness of the wood.
SPECIFICATIONS
Splitting force: 25 ton
Log capacity: 65cm
Engine: 6.5hp 208cc Briggs & Stratton CR950 single cylinder air-cooled petrol
Starting system: Recoil
Control valve: Auto return with adjustable detent
Pump size: 14GPM
Hydraulic cylinder bore x stroke: 100mm x 610mm
Hydraulic ram diameter: 45mm
Hydraulic capacity: 14.9L
Psi: 4037
Cylinder cycle time: 9.7 seconds
Beam: Heavy-duty U shape formed construction
Wedge size: 190mm

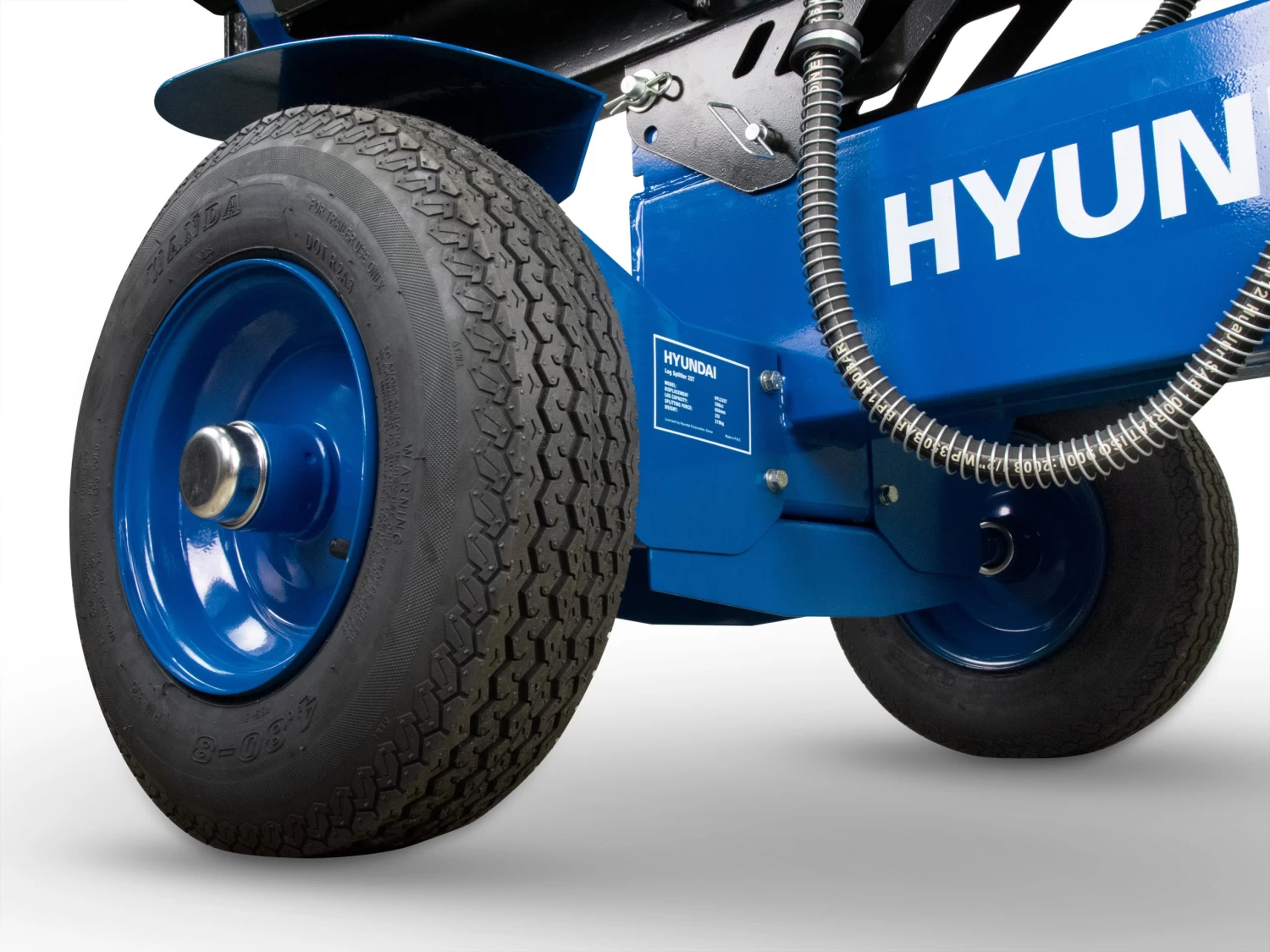

Wheels: 4.80-8 (16”) tyres
Tow hitch: 50mm (off road use only)
Dimensions: L 208cm x W 92cm x H 123cm
Packaged dimensions: 130cm x 77cm x 75cm
Weight: 219kg
View user manual
