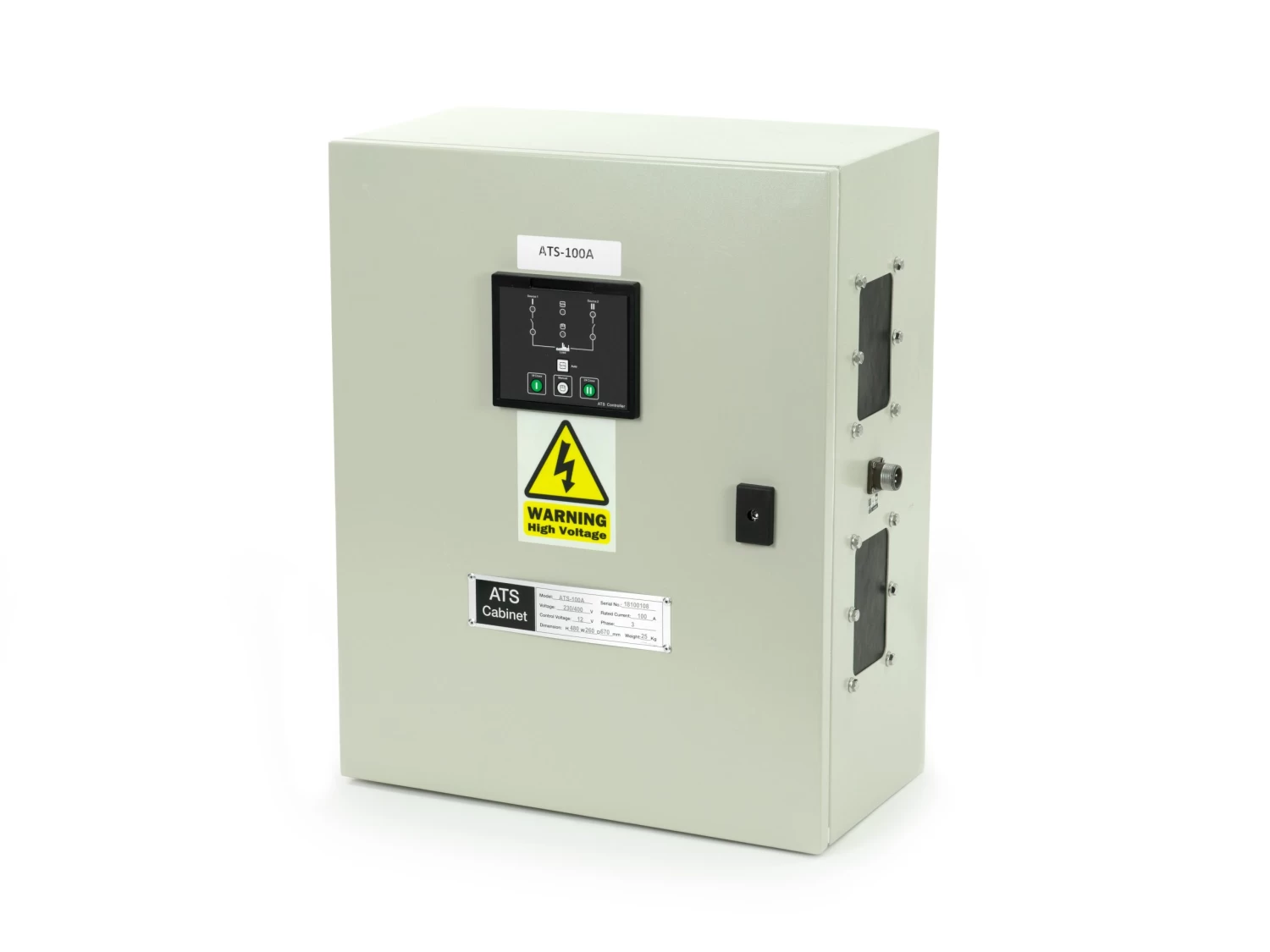

ATS System 3 Phase Up To 60kVA

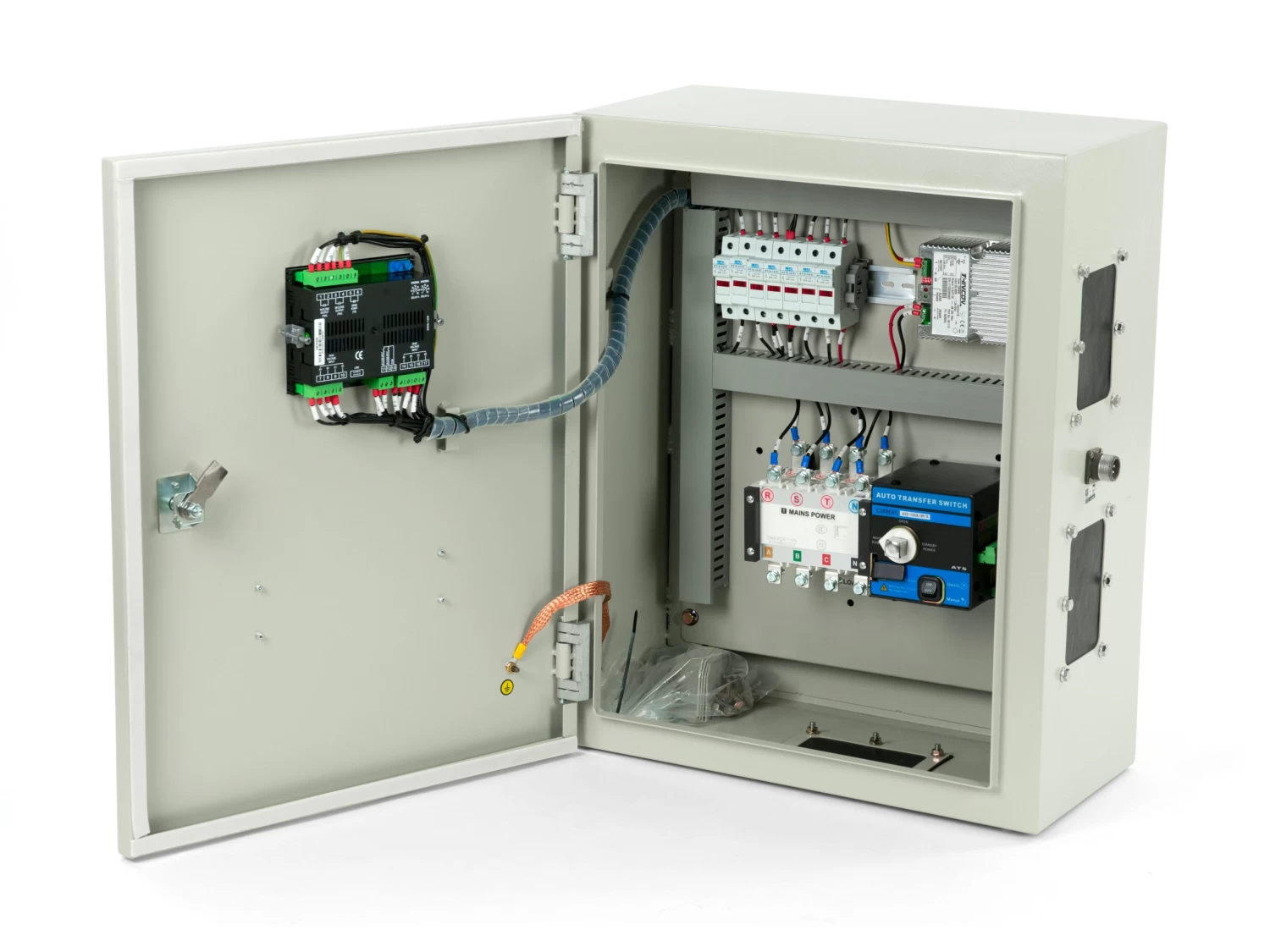

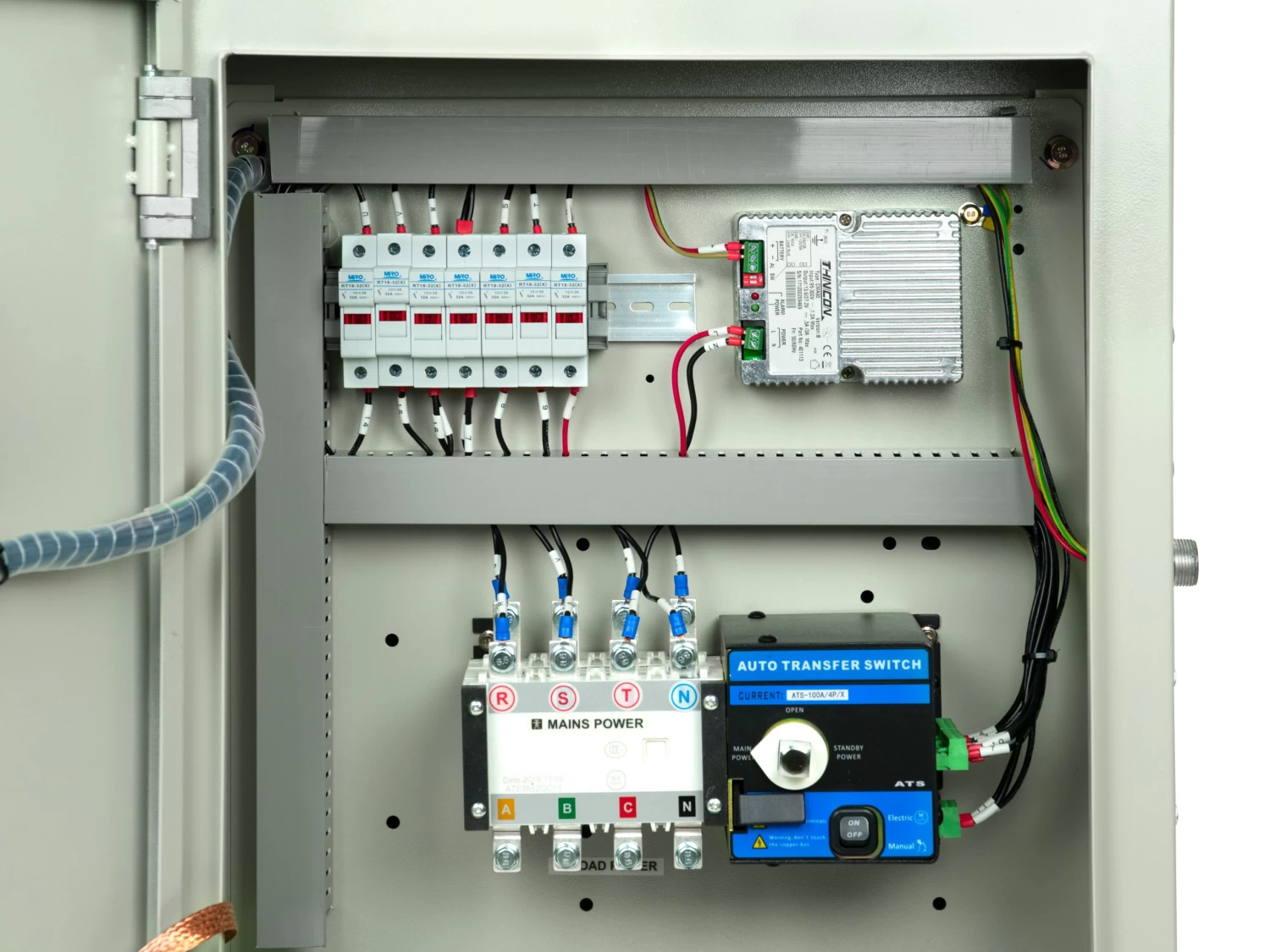

This automatic transfer switch allows on-off control of devices such as generators.

An ATS (automatic transfer switch) is used to change the power source to a secondary source, usually a generator, in case of power failure. When there is a failure of the primary power source the ATS automatically starts the generator and switches the input power to the generator. When the primary power source is restored the ATS resets the primary input.

SPECIFICATIONS
Voltage: 400V
Maximum power output: 60kVA
Maximum current: 100A
Battery charger: 12V

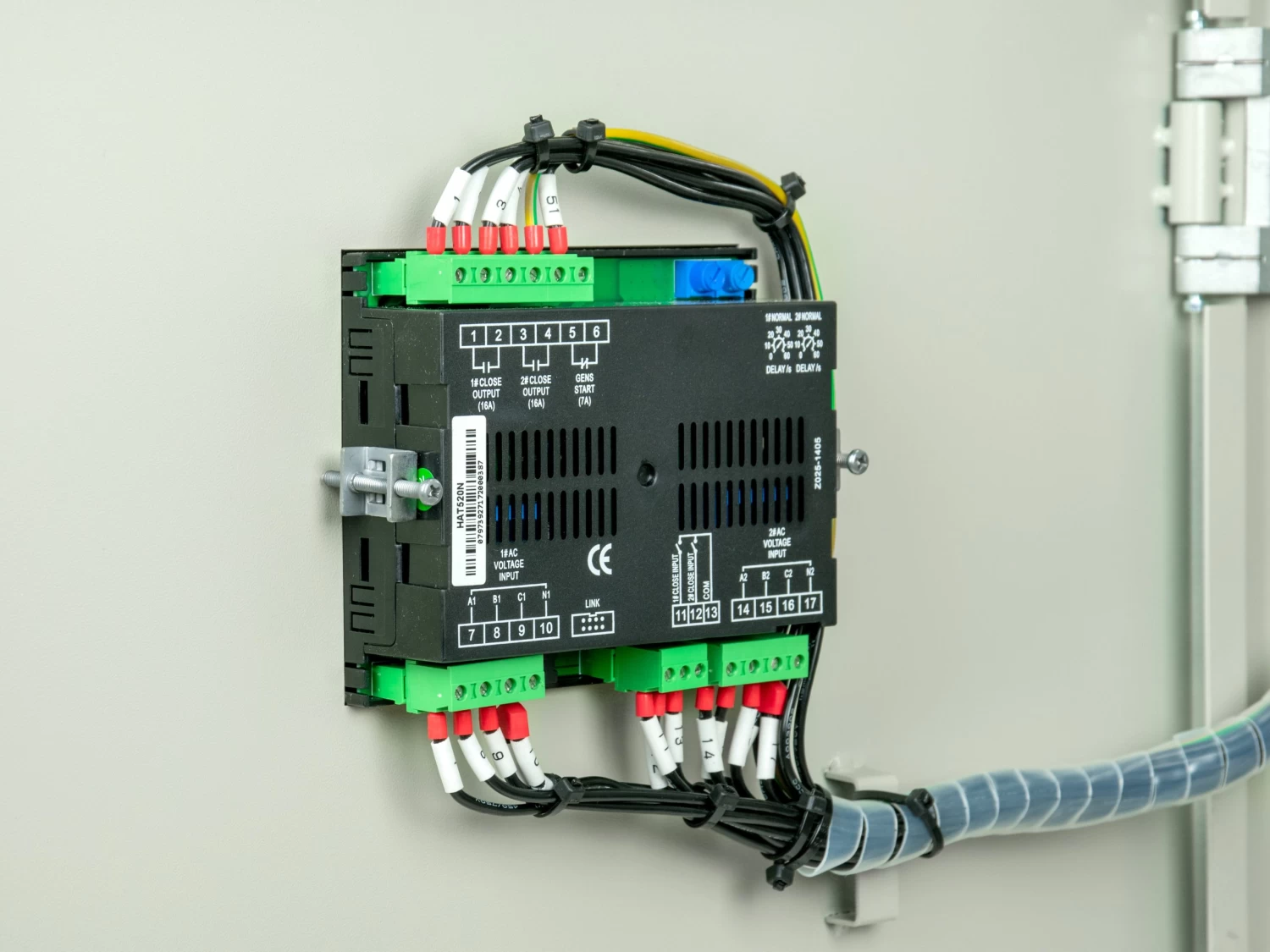

Controller: HAT220
Switchover time: 5 seconds
IP Rating: 54
Overall dimensions: 40 x 26 x 57cm
Weight: 17.5kg
